Microtek Medi-5000
Hi-speed digitizer for X-ray mammography films
“30% Reduction in time for Image Interpretation with Digitized Analog Mammograms.”
– from 2009 RSNA, Brem, MD, etc.
Microtek medical grade digitizer, the Medi-5000, can digitize X-Ray and mammography films rapidly in seconds. With the advanced technology of the LED light source, the Medi-5000 can reach full brightness and on/off operation immediately. The energy-saving Medi-5000 is perfect for fast-paced environment of the medical doctor’s office, QC Station and PACS.

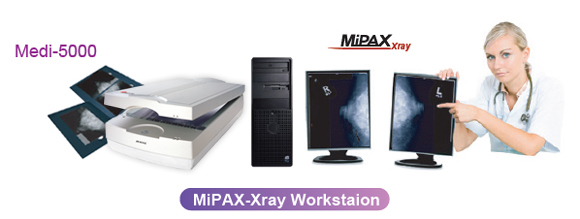

It captures details in bright and dark areas at a high optical resolution up to 3200 dpi, 4.5 Dmax, and 16-bit grayscale. Furthermore, the digitized mammography films can be easily read and utilized in the MiPAX gateway software to be integrated with PACS RIS/ system. It provides the medical professionals a smart and easy way to digitize and observe the traditional mammography films easily and efficiently.
Features
- FDA, SFDA certified for X-Ray Films
- No warm up time with LED light source
- 4.5 Dmax, 3200 dpi optical resolution (7.9 um spot size, 63 lp/mm)
- Smart-Scan to auto-crop multi-films scan at a time
- Provides customized templates to scan two films at a time
- Excellent image quality with very fine details
- Supports DICOM 3.0 and telemedicine with MiPAX
- Easy to operate, clean, and maintain
- Offers excellent image quality, performance, and secure e-medical records
Specifications
Scanner Type | Mammography films, Flatbed digitizer |
Image Sensor Type | CCD |
Resolution | Optical: 3200 dpi (7.9 um spot size, 63 lp/mm), Hardware: Up to 3200 x 6400 dpi, Default: 600 |
Light Source | LED Illuminator |
Scanning Area | Film Scan Area12″ x 16″ / 305 x 407 mm |
Scanning Speed | 21 seconds @ 800 dpi, 24 x 18 cm |
Dynamic Range | 4.5 Dmax, Transparency >= 0.15 to 4.0D |
Bit Depth | 8/12/16-bit grayscale |
Connectivity | 1 Hi-Speed USB (USB 2.0) |
Drivers | TWAIN |
Smart-Touch Buttons | 1 button (Scan) |
Dimensions (L x W x H) | 627.6 x 367.2 x 180.5 mm |
Weight | 16.1 kg |
Regulatory Compliance | CE0120, FDA, SFDA, BSMI, CB, CCC, ETL, FCC, RoHS |
Power Source | 100 – 240 VAC, 47 – 63 Hz, 54.9 Watts |
System Requirements PC | CD-ROM drive (for installing software), 2 GB RAM or more, Pentium IV PC or higher with USB port, Microsoft Windows 7 / Vista / XP / 2000 |
Inbox Contents | Digitizer unit, Power adapter & power cord, 2 Film holders, High-Speed USB 2.0 cable, CD(s), Manual(s) |
Software Included | Microtek ScanWizard Medi, Adobe Acrobat Reader |
Accessories | TMA (Optional), Microtek MiPAX-Xray software (Optional) |
Product specifications described herein are subject to change without notice.
