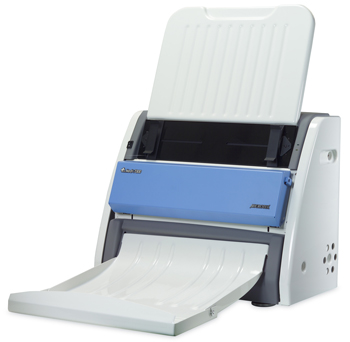

Microtek Medi-7000

High End X-Ray Digitizer. 7 Seconds per Chest X-Ray.

Price:  $ 9,995
(normally $ 12,995) includes FREE MiPAX scanning software (a $2,500 value)

“30% Reduction in time for Image Interpretation with Digitized Analog Mammograms.”
– from 2009 RSNA, Brem, MD, etc.

Microtek medical grade digitizer, the Medi-7000, can digitize X-Ray films rapidly in 7 seconds per chest X-Ray. With the advanced technology of the LED light source, the Medi-7000 can reach full brightness and on/off operation immediately. The Medi-7000 can scan various sizes of X-Ray films up to 14×35 inches, letting user easily archive many kinds of X-Ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-7000 ensures that the scans will capture all the details presenting in any area of the film and offer the superior image quality to the medical professionals.

Microtek Medi-7000

With the MiPAX systems of DICOM ready function, Medi-6000 Plus is perfect for fast-paced environment of the medical doctor’s office, QC Station and PACS system.


  • FDA certified
  • 7 seconds per Chest X-Ray
  • No warm up time with LED light source
  • 4.0 Dmax, 600 dpi optical resolution (42 µm spot size, 12 lp/mm)
  • Covers various sizes of x-ray films from 2.5″x2.5″ to 14″x35″
  • Auto-crop & Auto-deskew
  • Supports DICOM 3.0 and telemedicine with MiPAX
  • Easy to operate, clean, and maintain
  • Offers better quality, excellent performance, and secure e-medical records

Microtek Medi-7000

Microtek Medi-7000

Microtek Medi-7000



Scanner Type X-Ray films, Sheet-fed digitizer
Image Sensor Type CCD
Resolution Optical: 600 dpi (42 um spot size, 12 lp/mm), Hardware: Up to 600 x 1200 dpi, Default: 300 dpi
Light Source LED Illuminator
Scanning Area Min: 2.5″ x 2.5″ / 63.5 x 63.5 mm, Max: 14″ x35″ / 355.6 x 889 mm
Scanning Speed 7 seconds, @ 300 dpi, 14″ x 17″
Dynamic Range Transparency – 0.12 to 3.7D
Bit Depth 8/12/16-bit grayscale
Connectivity 1 Hi-Speed USB (USB 2.0)
Drivers TWAIN
Dimensions (L x W x H) 330 x 526 x 435 mm (without tray), 738 x 526 x 696 mm (with tray)
Weight 17.5 kg
Regulatory Compliance CE0120, FDA, SFDA, BSMI, CB, CCC, ETL, FCC, RoHS
Power Source 100 – 240 VAC, 47 – 63 Hz, 54.9 Watts
System Requirements PC CD-ROM drive (for installing software), 2 GB RAM or more, Pentium IV PC or higher with USB port, Microsoft Windows 7 / Vista / XP / 2000
Inbox Contents Digitizer unit, Power adapter & power cord, High-Speed USB 2.0 cable, CD(s), Manual(s)
Software Included Microtek ScanWizard Medi, Adobe Acrobat Reader
Accessories Microtek MiPAX-Xray software (Optional)


Product specifications described herein are subject to change without notice.
