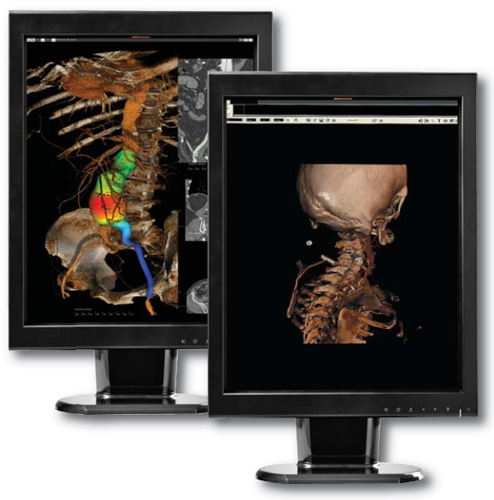

Canvys Color Image Systems CX2MP
Diagnostic & Clinical Imaging Displays.
At the core of Canvys’ Healthcare Display Solutions is our private label brand of Image Systems diagnostic and clinical imaging LCDs. Supported out of our Plymouth MN location, Image Systems has been recognized as an industry- leading display brand for the last 20 years by consistently providing the highest quality diagnostic and clinical display solutions to the healthcare industry. A critical component of every Image Systems display bundle is our proprietary Calibration Feedback System (CFS) software. The Image Systems engineering team recognizes that it is critical for radiology displays to present accurate and consistent images over time. Our Image Systems CFS calibration software is specifically designed to simplify the conformance and calibration of all Image Systems diagnostic and clinical use displays ensuring they maintain DICOM compliance and are properly calibrated throughout their life-cycle.
Canvys’ Image Systems X-Series 2 and 3 Mega-Pixel High Bright Color Displays set the standard for quality, flexibility, and accuracy in diagnostic LCDs. Exceptionally high brightness, high contrast ratios and calibration capabilities present consistent diagnostic quality images that enhance workflow for applications requiring a fusion of color and grayscale including PET, 3D, Cardiology and Nuclear Medicine.
Features:
- Self-Calibration Front Sensor – assures life-time DICOM® 3.14 compliance
- Stable Brightness Control – automatically with rear backlight sensor
- Calibration Precision- look-up Tables up to 12 bits
- Digital Ambient Light Sensor- warns on significant room lighting changes
- Luminance Uniformity Control – optimizes uniformity across screen
The retractable front sensors, coupled with Image Systems’ Calibration Feedback System (CFS), allow users to easily perform color point calibration, color matching and DICOM® part 14 calibrations.
These high performance diagnostic displays are designed to utilize commercial off-the-shelf (COTS) graphics cards to make them more flexible and affordable for end-users. Key features of this Image Systems X-Series High Bright Color Display include:
Downloads:
- Size: 21.3″
- Resolution: 2MP 1200×1600
- Brightness: typ. 860 cd/m2
- Contrast: 1050:1
- Viewing Angle: 176/176
- Approvals: EN/UL60601-1, FCC Class A
| Series / Model / Type | 2MP COLOR HB (X-Series) CX2MP | 3MP COLOR HB(X-Series) CX3MP | 3MP COLOR HB (P-Series) FPP2080C |
| LCD panel | TFT AMLCD IPS Color | ||
| Screen size | 21.3″ / 540 mm | 21.2″ / 539.5 mm | 20.8″? / 528 mm |
| Resolution | 2MP (1200 Ã- 1600) | 3MP (1536 Ã- 2048) | |
| Pixel pitch | 0.270 Ã- 0.270 mm | 0.21075 Ã- 0.21075 mm | 0.207 Ã- 0.207 mm |
| Brightness (max. typ.) | 860 cd/m2 | 900 cd/m2 | 600 cd/m2 |
| Brightness calibrated | 450 cd/m2 (typ.) | 400 cd/m2 (typ.) | |
| Contrast ratio (typ.) | 1050:1 | 1000:1 | 600:1 w/o LUC, 500:1 w/ LUC |
| Viewing angle (H Ã- V) | 176° / 176° | 176° / 176° | 170° / 170° |
| Input signal | DVI-D, DisplayPort | DVI-D | |
| Sync type | H-sync: 75 – 78 kHz V-sync: 60 – 62 Hz Dot CLK: 160 – 170 MHz (single) |
H-sync: 92 – 98 kHz V-sync: 58 – 62 Hz Dot CLK: 120 – 132 MHz (dual) |
|
| Bit depth | 14 bit | 12 bit | |
| Calibration | Rotating retractable front sensor with CFS s/w – enables color point and DICOM® 3.14 calibration | Retractable front sensor with CFS – enables color point and DICOM® 3.14 calibration | |
| Admin software | Local: CFS™, Enterprise: CFS™ WebSuite | ||
| Sensors | front, rear, ambient, temp. | ||
| VESA mounting | 100 Ã- 100 mm | ||
| Operating | 0 to 40 °C | 0 to 35 °C | |
| Storage | -20° to 60 °C; 4° to 140° F | ||
| Power supply | (internal) AC Input: AC100-240 V ±10%, 60 Hz / 50 Hz ± 3Hz |
AC 100-240 V ±10%, 60/50 Hz ±3 Hz DC Output ±12 V, 6.67 A |
|
| Power consumption | 100 W | 105 W | 110 W |
| Power Save Mode | DVI DMPM – less than 1 W | DVI DMPM | |
| Certifications | UL60601-1, CSA std., C22.2 No. 601.1, IEC/EN60601-1, CE, FCC Class B, ICES-003-B, VCCI-B, CCC, KCC, C-Tick | UL60601-1, CE, CCC, IEC/EN6060-1, FCC Class B, VCCI, CE, MIC, CCC | |
| Warranty display | 60 months | ||
| Other | Luminance Uniformity Control (LUC), USB, LED PrivateLight, self diagnostic tool | LUC, USB | |
