Canvys Color Image Systems FPP2080CP

Diagnostic & Clinical Imaging Displays.

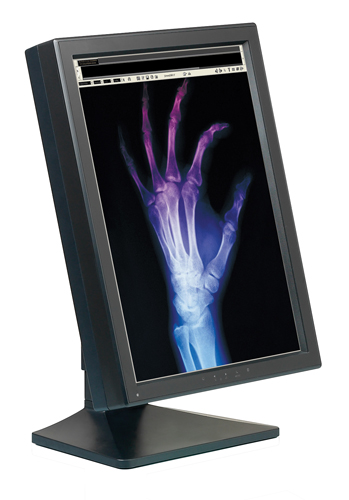

Canvys Color Image Systems FPP2080CP



At the core of Canvys’ Healthcare Display Solutions is our private label brand of Image Systems diagnostic and clinical imaging LCDs. Supported out of our Plymouth MN location, Image Systems has been recognized as an industry- leading display brand for the last 20 years by consistently providing the highest quality diagnostic and clinical display solutions to the healthcare industry. A critical component of every Image Systems display bundle is our proprietary Calibration Feedback System (CFS) software. The Image Systems engineering team recognizes that it is critical for radiology displays to present accurate and consistent images over time. Our Image Systems CFS calibration software is specifically designed to simplify the conformance and calibration of all Image Systems diagnostic and clinical use displays ensuring they maintain DICOM compliance and are properly calibrated throughout their life-cycle.

Canvys’ Image Systems High Bright Color Displays set the standard for quality, flexibility, and accuracy in diagnostic LCDs. Exceptionally high brightness, high contrast ratios and calibration capabilities present consistent diagnostic quality images that enhance workflow for applications requiring a fusion of color and grayscale including PET, 3D, Cardiology and Nuclear Medicine.

These high performance diagnostic displays are designed to utilize commercial off-the-shelf (COTS) graphics cards to make them more flexible and affordable for end-users. Key features of this Image Systems High Bright Color Display include:

Canvys Color Image Systems FPP2080CP

Features:

  • Self-Calibration Front Sensor – assures life-time DICOM® 3.14 compliance
  • Stable Brightness Control – automatically with rear backlight sensor
  • Calibration Precision- look-up Tables up to 12 bits
  • Digital Ambient Light Sensor- warns on significant room lighting changes
  • Luminance Uniformity Control – optimizes uniformity across screen

The retractable front sensors, coupled with Image Systems’ Calibration Feedback System (CFS), allow users to easily perform color point calibration, color matching and DICOM® part 14 calibrations.

  • Size: 20.8″
  • Resolution: 2048×1536
  • Brightness: typ. 600 cd/m2
  • Contrast: 600:1
  • Viewing Angle: 170/170
  • Approvals: EN/UL60601-1, FCC Class A
Series / Model / Type2MP COLOR HB (X-Series) CX2MP3MP COLOR HB(X-Series) CX3MP3MP COLOR HB (P-Series) FPP2080C
LCD panelTFT AMLCD IPS Color
Screen size21.3″ / 540 mm21.2″ / 539.5 mm20.8″ / 528 mm
Resolution2MP (1200 x 1600)3MP (1536 x 2048)
Pixel pitch0.270 x 0.270 mm0.21075 x 0.21075 mm0.207 x 0.207 mm
Brightness (max. typ.)860 cd/m2900 cd/m2600 cd/m2
Brightness calibrated450 cd/m2 (typ.)400 cd/m2 (typ.)
Contrast ratio (typ.)1050:11000:1600:1 w/o LUC, 500:1 w/ LUC
Viewing angle (H x V)176° / 176°176° / 176°170° / 170°
Input signalDVI-D, DisplayPortDVI-D
Sync typeH-sync: 75 – 78 kHz
V-sync: 60 – 62 Hz
Dot CLK: 160 – 170 MHz
(single)
H-sync: 92 – 98 kHz
V-sync: 58 – 62 Hz
Dot CLK: 120 – 132 MHz (dual)
Bit depth14 bit12 bit
CalibrationRotating retractable front sensor with CFS s/w – enables color point and DICOM® 3.14 calibrationRetractable front sensor with CFS – enables color point and DICOM® 3.14 calibration
Admin softwareLocal: CFS?, Enterprise: CFS? WebSuite
Sensorsfront, rear, ambient, temp.
VESA mounting100 x 100 mm
Operating0 to 40 °C0 to 35 °C
Storage-20° to 60 °C; 4° to 140° F
Power supply(internal) AC Input:
AC100-240 V ±10%,
60 Hz / 50 Hz ± 3Hz
AC 100-240 V ±10%,
60/50 Hz
±3 Hz DC Output ±12 V, 6.67 A
Power consumption100 W105 W110 W
Power Save ModeDVI DMPM – less than 1 WDVI DMPM
CertificationsUL60601-1, CSA std., C22.2 No. 601.1, IEC/EN60601-1, CE, FCC Class B, ICES-003-B, VCCI-B, CCC, KCC, C-TickUL60601-1, CE, CCC, IEC/EN6060-1, FCC Class B, VCCI, CE, MIC, CCC
Warranty display60 months
OtherLuminance Uniformity Control (LUC), USB, LED PrivateLight, self diagnostic toolLUC, USB
