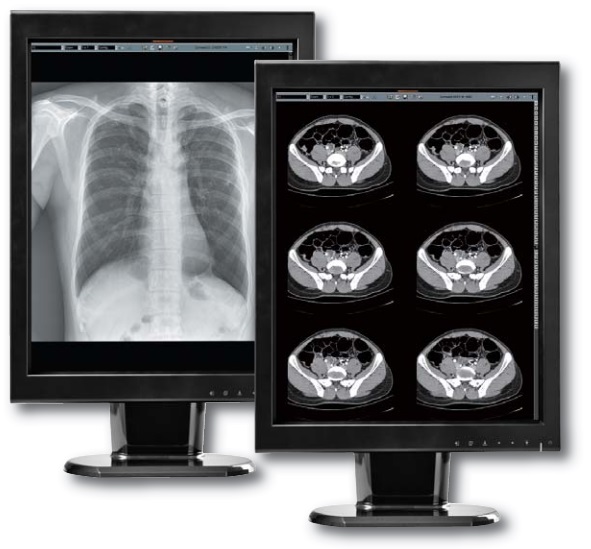

Canvys Grayscale Image Systems FPP20HXP
Diagnostic & Clinical Imaging Displays.
At the core of Canvys’ Healthcare Display Solutions is our private label brand of Image Systems diagnostic and clinical imaging LCDs. Supported out of our Plymouth MN location, Image Systems has been recognized as an industry- leading display brand for the last 20 years by consistently providing the highest quality diagnostic and clinical display solutions to the healthcare industry. A critical component of every Image Systems display bundle is our proprietary Calibration Feedback System (CFS) software. The Image Systems engineering team recognizes that it is critical for radiology displays to present accurate and consistent images over time. Our Image Systems CFS calibration software is specifically designed to simplify the conformance and calibration of all Image Systems diagnostic and clinical use displays ensuring they maintain DICOM compliance and are properly calibrated throughout their life-cycle.
Canvys’ Image Systems Grayscale Displays set the standard for quality, flexibility, and accuracy in diagnostic LCDs. These high performance diagnostic displays are designed to utilize commercial off-the-shelf (COTS) graphics cards to make them more flexible and affordable for end-users.
Features:
- Self-Calibration Front Sensor – assures life-time DICOM® 3.14 compliance
- Stable Brightness Control – automatically with rear backlight sensor
- Calibration Precision- look-up Tables up to 12 bits
- Digital Ambient Light Sensor- warns on significant room lighting changes
- Luminance Uniformity Control – optimizes uniformity across screen
The retractable front sensors, coupled with Image Systems’ Calibration Feedback System (CFS), allow users to easily perform color point calibration, color matching and DICOM® part 14 calibrations.
- Size: 20.8″
- Resolution: 1536×2048
- Brightness: max. 1000 cd/m2
- Contrast: typ. 900:1
- Viewing Angle: 170/170
- Approvals: FCC Class B, VCCI, CE, MIC, CCC, UL60601-1, IEC/EN6060-1 FDA510k
Downloads:
Related Link : Canvys MD301C4,
| Series / Model / Type | 2MP Mono HB (X-Series)MX2MP | 3MP Mono HB (X-Series) MX3MP | 3MP Mono HB (P-Series) FPP20HXP |
| LCD panel | TFT AMLCD IPS Grayscale | ||
| Screen size | 21.3″ / 540 mm | 21.3″ / 541.4 mm | 20.8″? / 528 mm |
| Viewable image size | 432.0 Ã- 324.0 mm | 433.1 Ã- 324.8 mm | 423.9 Ã- 318.0 mm |
| Resolution | 2MP (1200 Ã- 1600) | 3MP (1536 Ã- 2048) | |
| Pixel pitch | 0.270 Ã- 0.270 mm | 0.2115 Ã- 0.2115 mm | 0.207 Ã- 0.207 mm |
| Brightness (max. typ.) | 1650 cd/m2 | 1450 cd/m2 | 1000 cd/m2 |
| Brightness calibrated | 500 cd/m2 (typ.) | ||
| Contrast ratio (typ.) | 850:1 | 900:1 | 900:1 w/o LUC, 750:1 w/ LUC |
| Viewing angle (H Ã- V) | 176° / 176° | 176° / 176° | |
| Input signal | DVI-D, DisplayPort | DVI-D | |
| Sync type | H-sync: 75 – 78 kHz V-sync: 60 – 62 Hz Dot CLK: 160 – 170 MHz (single) |
H-sync: 92 – 98 kHz V-sync: 58 – 62 Hz Dot CLK: 120 – 132 MHz (dual) |
|
| Bit depth | 14 bit | 12 bit | |
| Calibration | Built in sensor with Calibration Feedback System (CFS™) enables self-calibration | ||
| Admin software | Local: CFS™, Enterprise: CFS™ WebSuite | ||
| Sensors | front, rear, ambient, temp. | ||
| VESA mounting | 100 Ã- 100 mm | ||
| Tilt / swivel / height adjustment | -3°, +15° / ±20° / 110 mm | 3°, ±30° / ±30° / 108 mm | |
| Operating | 0 to 40 °C | ||
| Storage | -20° to 60 °C; 4° to 140° F | ||
| Power supply | (internal) AC Input: AC100-240 V ±10%, 60 Hz / 50 Hz ± 3Hz |
AC 100-240 V ±10%, 60/50 Hz ±3 Hz DC 12 V, 6.67 A |
|
| Power consumption | 85 W | 75W | |
| Power saving | DVI DMPM – less than 1 W | DVI DMPM | |
| Certifications | UL60601-1, CSA std., C22.2 No. 601.1, IEC/EN60601-1, CE, FCC Class B, ICES-003-B, VCCI-B, CCC, KCC, C-Tick | UL60601-1, CE, CCC, IEC/EN6060-1, FCC Class B, VCCI, CE, MIC, CCC | |
| Warranty display | 60 months | ||
| Other | Luminance Uniformity Control (LUC), USB, LED PrivateLight, self diagnostic tool | LUC, USB | |
