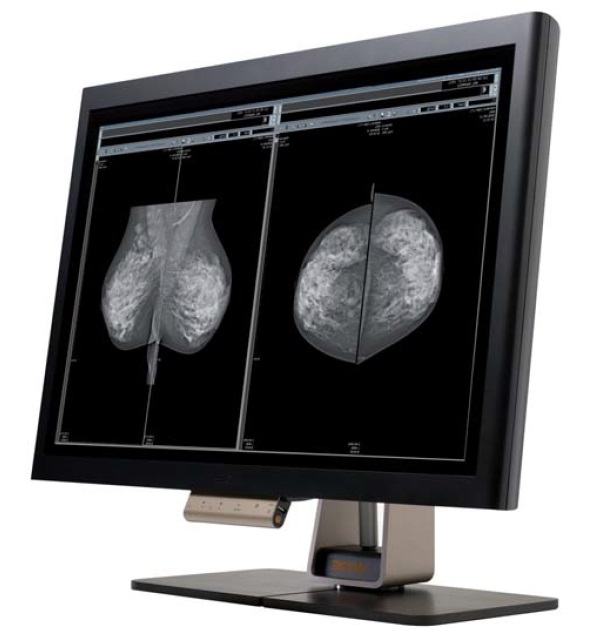

Canvys Grayscale WIDE MW100 LCD Display



The WIDE MW100 10 Megapixel (4096 Ã- 2560), 14 bit grayscale LCD sets the standard for diagnostic review of Mammography and plain film studies. Delivering superb image quality, maximum brightness of 1250 cd/m and unsurpassed consistency over the life of the LCD glass, the MW10MP is the right choice for discerning radiology departments. This product is now FDA 510K approved.

Canvys Grayscale WIDE MW100 LCD Display

Features:

  • Seamless 30″? Desktop
  • Run as 1Ã- 10MP or 2Ã-5MP
  • Precise Expression: True 10-bit LCD and 14-bit precision look-up tables
  • Built-in Front Sensor for DICOM® Calibration
  • Luminance Uniformity Correction (LUC)
  • Digital Ambient Control (DAC)
  • FDA 510K Approved



                                                    Download Pdf: Canvys CL2400

Related Link : Canyvs Sales Sheet HC Carts Mount

Series / Model / TypeWIDE MW10MP
LCD PanelTFT AMLCD IPS Grayscale, true 10 bit panel
Screen Size30.00 / 760.75 mm
Viewable Image Size645.12 Ã- 403.2 mm (25.4″ Ã- 15.9″)
Resolution10MP (4096 Ã- 2560)
Pixel pitch0.158 Ã- 0.158 mm
Brightness (max. / typ.)1250 cd/m2
Brightness calibrated (typ.)500 cd/m2
Contrast ratio (typ.)850:1
Viewing angle (H Ã- V)1702 / 1702
Input SignalDVI-D (2Ã-), Display Port (2Ã-)
Sync typeH-sync: 99 – 107 kHz | V-sync: 47 – 53 Hz Dot CLK: 142 – 152 MHz (dual)
Bit Depth14 bit
CalibrationBuilt in sensor with Calibration Feedback System (CFS™) enables self-calibration
Admin SoftwareLocal: CFS™, Enterprise: CFS™ WebSuite
SensorsFront, Rear, Ambient, Temperatue
VESA mounting interface100 Ã- 100 mm
Weightwith stand: 22.0 kg (48.5 lb)
without stand: 16.0 kg (35.3 lb)
Tilt / Swivel / Height Adjustment-30, ±15 / ±900 / 110 mm
Operating0 to 40 0C (32 to 104 0F)
Storage-20 to 60 0C (-4 to 140 0F)
Power Supply(internal) AC 100-240 V ±10%, 60/50 Hz ±3 Hz DC 12 V, 6.67 A
Power Consumption150 W max.
Power savingDVI DMPM – less than 2 W
CertificationsUL60601-1, CSA Std. C22.2 NO.601.1, IEC/EN60601-1, FCC Class B, VCCI Class B, KCC, CCC, C-Tick, CE, FDA 510K*
Warranty Display60 months – Electrical
60 months – Backlight to half-life
OtherLuminance Uniformity Control (LUC), USB,
LED PrivateLight, self diagnostic tool



* Please contact your Canvys sales team for details including MQSA documentation.
