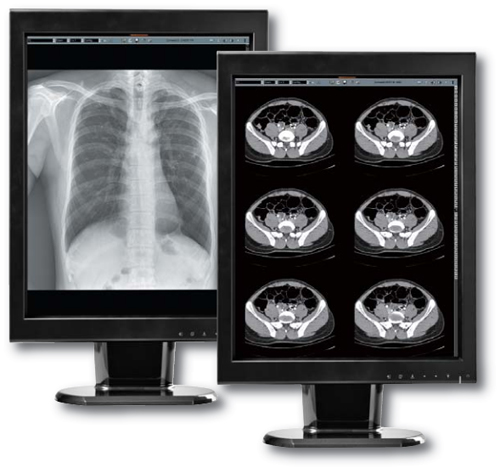

Canvys Grayscale Image Systems MX2MP

Diagnostic & Clinical Imaging Displays.

Canvys Grayscale Image Systems MX2MP


At the core of Canvys’ Healthcare Display Solutions is our private label brand of Image Systems diagnostic and clinical imaging LCDs. Supported out of our Plymouth MN location, Image Systems has been recognized as an industry- leading display brand for the last 20 years by consistently providing the highest quality diagnostic and clinical display solutions to the healthcare industry. A critical component of every Image Systems display bundle is our proprietary Calibration Feedback System (CFS) software. The Image Systems engineering team recognizes that it is critical for radiology displays to present accurate and consistent images over time. Our Image Systems CFS calibration software is specifically designed to simplify the conformance and calibration of all Image Systems diagnostic and clinical use displays ensuring they maintain DICOM compliance and are properly calibrated throughout their life-cycle.

Radiologists and Clinicians have come to expect highly accurate and calibrated displays from Image Systems enabling them to promote positive patient outcomes. We continue to meet these expectations with the Image Systems X-Series 2, 3 and 5 Mega-Pixel Grayscale LCDs. These displays offer functionality that is tied to our proprietary Calibration Feedback System™ (CFS) software assuring users of consistent DICOM® compliant images throughout the life of their LCD.

Canvys Grayscale Image Systems MX2MP


  • Self-Calibration Front Sensor – assures life-time DICOM® 3.14 compliance
  • Stable Brightness Control – automatically with rear backlight sensor
  • Calibration Precision- look-up Tables up to 12 bits
  • Digital Ambient Light Sensor- warns on significant room lighting changes
  • Luminance Uniformity Control – optimizes uniformity across screen


These high performance diagnostic displays are designed to utilize commercial off-the-shelf (COTS) graphics cards to make them more flexible and affordable for end-users. Key features of every Image Systems X-Series High Bright Grayscale Display include:

  • Size: 21.3″
  • Resolution: 1200×1600
  • Brightness: typ. 1650 cd/m2
  • Contrast: 850:1
  • Viewing Angle: 176/176                                                                                                        Related Link: Canvys Sales Sheet
  • Approvals: EN/UL60601-1, FCC Class A                                                                                            &              Canvys FP4201
Series / Model / Type 2MP Mono HB (X-Series) MX2MP 3MP Mono HB (X-Series) MX3MP 3MP Mono HB (P-Series) FPP20HXP
LCD panel TFT AMLCD IPS Grayscale
Screen size 21.3″ / 540 mm 21.3″ / 541 mm 20.8″? / 528 mm
Viewable image size 432.0 Ã- 324.0 mm 433.1 Ã- 324.8 mm 423.9 Ã- 318.0 mm
Resolution 2MP (1200 Ã- 1600) 3MP (1536 Ã- 2048)
Pixel pitch 0.270 Ã- 0.270 mm 0.2115 Ã- 0.2115 mm 0.207 Ã- 0.207 mm
Brightness (max. typ.) 1650 cd/m2 1450 cd/m2 1000 cd/m2
Brightness calibrated 500 cd/m2 (typ.)
Contrast ratio (typ.) 850:1 900:1 900:1 w/o LUC, 750:1 w/ LUC
Viewing angle (H Ã- V) 170° / 170° 170° / 170°
Input signal DVI-D, DisplayPort DVI-D
Sync type H-sync: 75 – 78 kHz
V-sync: 60 – 62 Hz
Dot CLK: 160 – 170 MHz
H-sync: 92 – 98 kHz
V-sync: 58 – 62 Hz
Dot CLK: 120 – 132 MHz (dual)
Bit depth 14 bit 12 bit
Calibration Built in sensor with Calibration Feedback System (CFS™) enables self-calibration
Admin software Local: CFS™, Enterprise: CFS™ WebSuite
Sensors front, rear, ambient, temp.
VESA mounting 100 Ã- 100 mm
Tilt / swivel / height adjustment -3°, +15° / ±20° / 110 mm 3°, ±30° / ±30° / 108 mm
Operating 0 to 40 °C 0 to 35 °C
Storage -20° to 60 °C; 4° to 140° F
Power supply (internal) AC Input:
AC100-240 V ±10%,
60 Hz / 50 Hz ± 3Hz
AC 100-240 V ±10%,
60/50 Hz
±3 Hz DC Output ±12 V, 6.67 A
Power consumption 85 W 105 W 75 W
Power Save Mode DVI DMPM – less than 1 W DVI DMPM
Certifications UL60601-1, CSA std., C22.2 No. 601.1, IEC/EN60601-1, CE, FCC Class B, ICES-003-B, VCCI-B, CCC, KCC, C-Tick UL60601-1, CE, CCC, IEC/EN6060-1, FCC Class B, VCCI, CE, MIC, CCC
Warranty display 60 months
Other Luminance Uniformity Control (LUC), USB, LED PrivateLight, self diagnostic tool LUC, USB
