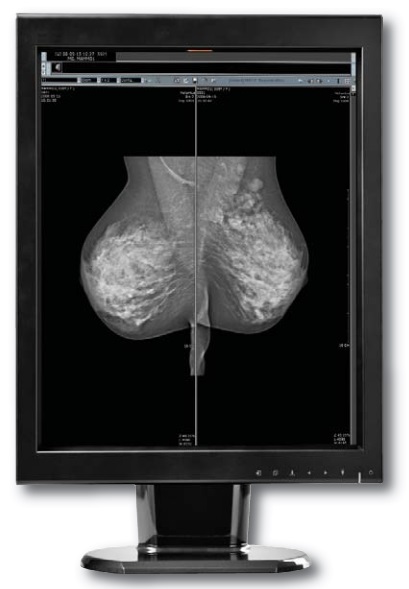

Canvys Grayscale Image Systems MX5MP
Diagnostic & Clinical Imaging Displays.
At the core of Canvys’ Healthcare Display Solutions is our private label brand of Image Systems diagnostic and clinical imaging LCDs. Supported out of our Plymouth MN location, Image Systems has been recognized as an industry- leading display brand for the last 20 years by consistently providing the highest quality diagnostic and clinical display solutions to the healthcare industry. A critical component of every Image Systems display bundle is our proprietary Calibration Feedback System (CFS) software. The Image Systems engineering team recognizes that it is critical for radiology displays to present accurate and consistent images over time. Our Image Systems CFS calibration software is specifically designed to simplify the conformance and calibration of all Image Systems diagnostic and clinical use displays ensuring they maintain DICOM compliance and are properly calibrated throughout their life-cycle.
Radiologists and Clinicians have come to expect highly accurate and calibrated displays from Image Systems enabling them to promote positive patient outcomes. We continue to meet these expectations with the Image Systems X-Series 2, 3 and 5 Mega-Pixel Grayscale LCDs. These displays offer functionality that is tied to our proprietary Calibration Feedback System™ (CFS) software assuring users of consistent DICOM® compliant images throughout the life of their LCD.
Features:
- Self-Calibration Front Sensor – assures life-time DICOM® 3.14 compliance
- Stable Brightness Control – automatically with rear backlight sensor
- Calibration Precision- look-up Tables up to 12 bits
- Digital Ambient Light Sensor- warns on significant room lighting changes
- Luminance Uniformity Control – optimizes uniformity across screen
These high performance diagnostic displays are designed to utilize commercial off-the-shelf (COTS) graphics cards to make them more flexible and affordable for end-users. Key features of this Image Systems X-Series High Bright Grayscale Display include:
- Size: 21.3″
- Resolution: 2048×2560
- Brightness: typ. 1100 cd/m2
- Contrast: 850:1
- Viewing Angle: 170/170
- Approvals: IEC/UL/CSA 60601-1, FCC , CE, others
Download PDF : Canvys Sales Sheet CL 2000
and User manual Pdf
| Series / Model / Type | Image Systems MX5MP |
| LCD Panel | TFT AMLCD IPS Grayscale |
| Screen Size | 21.3″ / 540.9 mm |
| Viewable Image Size | 422.4 Ã- 377.9 mm (16.6″ Ã- 13.3″) |
| Resolution | 5MP (2048 Ã- 2560) |
| Pixel pitch | 0.165 Ã- 0.165 mm |
| Brightness (max. / typ.) | 1100 cd/m2 |
| Brightness calibrated (typ.) | 500 cd/m2 |
| Contrast ratio (typ.) | 850:1 |
| Viewing angle (H Ã- V) | 1702 / 1702 |
| Input Signal | DVI-D, Display Port |
| Sync type | H-sync: 99 – 107 kHz | V-sync: 47 – 53 Hz Dot CLK: 142 – 152 MHz (dual) |
| Bit Depth | (4096 gradation) |
| Calibration | Built in sensor with Calibration Feedback System (CFS™) enables self-calibration |
| Admin Software | Local: CFS™, Enterprise: CFS™ WebSuite |
| Sensors | Front, Rear, Ambient, Temperatue |
| VESA mounting interface | 100 Ã- 100 mm |
| Weight | 12.0 kg (26.45 lb) with stand |
| Tilt / Swivel / Height Adjustment | -30, ±15 / ±200 / 110 mm |
| Operating | 0 to 40 0C (32 to 104 0F) |
| Storage | -20 to 60 0C (-4 to 140 0F) |
| Power Supply | (internal) AC 100-240 V ±10%, 60/50 Hz ±3 Hz DC 12 V, 6.67 A |
| Power Consumption | 85 W max. |
| Power saving | DVI DMPM – less than 1 W |
| Certifications | UL60601-1, CSA Std. C22.2 NO.601.1, IEC/EN60601-1, FCC Class B, VCCI Class B, KCC, CCC, C-Tick, CE, FDA 510K* |
| Warranty Display | 60 months – Electrical 60 months – Backlight to half-life |
| Other | Luminance Uniformity Control (LUC), USB, LED PrivateLight, self diagnostic tool |
| Signal cable | DVI to DVI |
| * Please contact your Canvys sales team for details including MQSA documentation. | |
