3MP Dome E3cHB Color Radiology Display

High-Bright Color. DICOM Calibration.

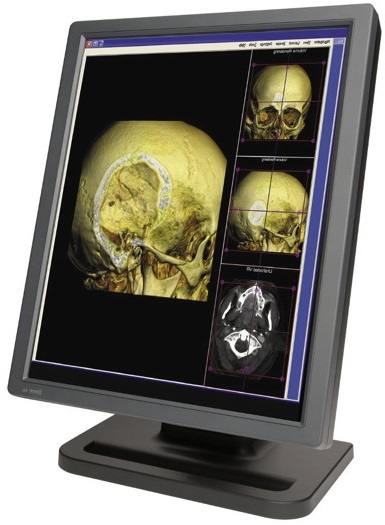

3MP Dome E3cHB Color Radiology Display



The Dome E3cHB is a high-bright PACS display ideal for general purpose imaging and deployable throughout the hospital enterprise.

3MP Dome E3cHB Color Radiology Display

Features:

  • FDA 510(k) cleared
  • High-bright 3MP color medical display
  • Suitable for grayscale and color images
  • Flexible, lightweight, low-power design
  • Quality image viewing without compromise



LCD Characteristics
Technology TFT AMLCD Dual
Domain IPS, 3 subpixels per pixel
Screen Size (diagonal) 21.3″ (541mm)
Display Resolution (pixels) 1536 x 2048 Portrait, 2048 x 1536 Landscape
Pixel Pitch 211.5μm, 120 DPI
Viewing Angle (CR 10:1) 176Â? horizontal and vertical
Response Time 14 ms typical
Optical Characteristics
Brightness 800 cd/m² typical
Default Calibrated 500 cd/m²
Contrast Ratio 750:1 typical
DICOM LTU 16-bit architecture with 0.3 JND precision
DICOM Characterization LCD panels individually factory characterized with a NIST-traceable
photometer. Characteristic data is stored in the display and
remains available throughout the product life.
DICOM Calibration DICOM calibration performed by Dome CXtra™ using the
RightLight™ internal photometer and automatically maintained for
the life of the display.
DICOM Conformance Testing DICOM conformance maintained by RightLight™ internal
photometer. Independent conformance testing using Dome CXtra™
with an external photometer.
Panel Connectivity
Video Input DisplayPort 1.1 and Dual Link DVI-D
Pixel Data Sizes 8-bit, 16-bit, 24-bit, and 30-bit per pixel color
VGA Compatibility 640 x 480 to 1280 x 1024
USB Interface Built-in USB 2.0 HUB on stand, USB B upstream port
Video Input Formats
Display Size without stand
(H x W x D)
18.7″ x 14.5″ x 4.0″
(475mm x 369mm x 102mm)
Weight without stand 15 lbs (6.6 kg)
Weight with stand 23 lbs (10.2 kg)
Mounting Options 100 x 100 mm VESA mounting standard. Desktop stand includes
height, pivot, swivel, and tilt adjustment.
Power Input 100 to 240 VAC 50-60 Hz
Power Consumption 81 Watts typica
Operating Range 10 to 35 degrees C
Certifications
Medical FDA registration #2954921 and #1226517; 510(k)
Safety & Emissions ANSI/AAMI ES60601-1, EN60601-1, EN60601-1-2, CAN/CSA-C22.2
No. 60601-1, FCC, CE, CCC, TUV-GM, VCCI, KCCTUV-GM
Environmental RoHS, WEEE, REACH
Service and Support
Warranty 5-year standard warranty
Backlight Warranty 5-year standard warranty
Specifications may vary based on customized solution requirements.
