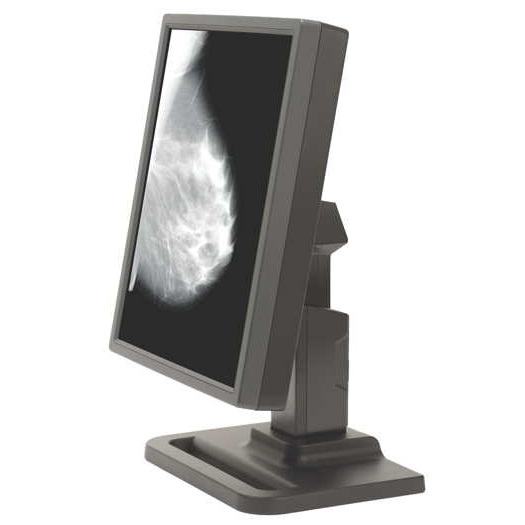

5MP Dome E5 Grayscale Radiology Display with Quadro 2000D
High Resolution. DICOM Calibrated.
The Dome E5 grayscale medical display is built for the most demanding diagnostic applications, including mammography, CR, and DR with unsurpassed image quality and resolution.
Features:
- High-bright 5MP grayscale radiology monitor
- Ideal for high-end radiology and mammography
- Flexible, lightweight, low-power design
- Uncompromised, pristine image quality
Downloads:
| LCD Characteristics | |
| Technology | TFT AMLCD Dual Domain IPS, 3 subpixels per pixel |
| Screen Size (diagonal) | 21.3″ (541mm) |
| Display Resolution (pixels) | 2048 x 2560 Portrait, 2560 x 2048 Landscape |
| Pixel Pitch | 165μm, 154 dpi |
| Viewing Angle (CR 10:1) | 170Â? horizontal and vertical |
| Response Time | 18 ms typical |
| Optical Characteristics | |
| Brightness | 1100 cd/m2 typical |
| Default Calibrated | 500 cd/m² |
| Contrast Ratio | 850:1 typical |
| DICOM LTU | 16-bit architecture with 0.2 JND precision |
| DICOM Characterization | LCD panels individually factory characterized with a NIST-traceable photometer. Characteristic data is stored in the display and remains available throughout the product life. |
| DICOM Calibration | DICOM calibration performed by Dome CXtra™ using the RightLight™ internal photometer. DICOM calibration LUT stored in the display and automatically maintained for the life of the display. |
| DICOM Conformance Testing | DICOM conformance maintained by RightLight™ internal photometer. Independent conformance testing using Dome CXtra™ with an external photometer. |
| Panel Connectivity | |
| Video Input | Dual Link DVI-D |
| Pixel Data Sizes | 8-bit and 10-bit per pixel grayscale, 24-bit color mapped to luminance |
| VGA Compatibility | 640 x 480 to 1280 x 1024 |
| USB Interface | Built-in USB 2.0 HUB on stand |
| Physical Characteristics | |
| Display Size without stand (H x W x D) |
18.5″ x 15.2″ x 4.1″ (470mm x 387mm x 103mm) |
| Weight without stand | 14 lbs (6.4 kg) |
| Weight with stand | 22 lbs (10.0 kg) |
| Mounting Options | 100 x 100 mm VESA mounting standard. Desktop stand includes height, pivot, swivel, and tilt adjustment. |
| Power Input | 100 to 240 VAC 50-60 Hz |
| Power Consumption | 55 Watts typical |
| Operating Range | 10 to 35 degrees C |
| Certifications | |
| Medical | FDA registration #2954921 and #1226517; 510(k) |
| Safety & Emissions | ANSI/AAMI ES60601-1, EN60601-1, EN60601-1-2, CAN/CSA-C22.2 No. 60601-1, FCC, CE, CCC, TUV-GM, VCCI, KCC |
| Environmental | RoHS, WEEE, REACH |
| Service and Support | |
| Warranty | 5-year standard warranty |
| Backlight Warranty | 5-year standard warranty |
Specifications may vary based on specific customized solution requirements.
