Dual Head 5MP Dome E5 Grayscale Radiology Display

High Resolution. DICOM Calibrated.

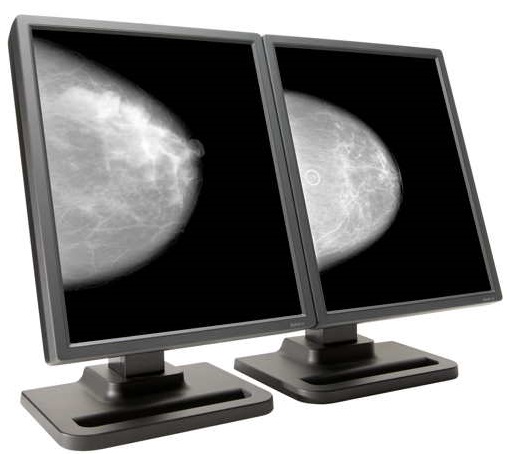

Dual Head 5MP Dome E5 Grayscale Radiology Display


The Dome E5 grayscale medical display is built for the most demanding diagnostic applications, including mammography, CR, and DR with unsurpassed image quality and resolution.

Dual Head 5MP Dome E5 Grayscale Radiology Display


  • High-bright 5MP grayscale radiology monitor
  • Ideal for high-end radiology and mammography
  • Flexible, lightweight, low-power design
  • Uncompromised, pristine image quality


LCD Characteristics
Technology TFT AMLCD Dual
Domain IPS, 3 subpixels per pixel
Screen Size (diagonal) 21.3″ (541mm)
Display Resolution (pixels) 2048 x 2560 Portrait, 2560 x 2048 Landscape
Pixel Pitch 165μm, 154 dpi
Viewing Angle (CR 10:1) 170Â? horizontal and vertical
Response Time 18 ms typical
Optical Characteristics
Brightness 1100 cd/m2 typical
Default Calibrated 500 cd/m²
Contrast Ratio 850:1 typical
DICOM LTU 16-bit architecture with 0.2 JND precision
DICOM Characterization LCD panels individually factory characterized with a NIST-traceable
photometer. Characteristic data is stored in the display and
remains available throughout the product life.
DICOM Calibration DICOM calibration performed by Dome CXtra™ using the
RightLight™ internal photometer. DICOM calibration LUT stored in
the display and automatically maintained for the life of the
DICOM Conformance Testing DICOM conformance maintained by RightLight™ internal
photometer. Independent conformance testing using Dome CXtra™
with an external photometer.
Panel Connectivity
Video Input Dual Link DVI-D
Pixel Data Sizes 8-bit and 10-bit per pixel grayscale, 24-bit color mapped to
VGA Compatibility 640 x 480 to 1280 x 1024
USB Interface Built-in USB 2.0 HUB on stand
Physical Characteristics
Display Size without stand
(H x W x D)
18.5″ x 15.2″ x 4.1″
(470mm x 387mm x 103mm)
Weight without stand 14 lbs (6.4 kg)
Weight with stand 22 lbs (10.0 kg)
Mounting Options 100 x 100 mm VESA mounting standard. Desktop stand includes
height, pivot, swivel, and tilt adjustment.
Power Input 100 to 240 VAC 50-60 Hz
Power Consumption 55 Watts typical
Operating Range 10 to 35 degrees C
Medical FDA registration #2954921 and #1226517; 510(k)
Safety & Emissions ANSI/AAMI ES60601-1, EN60601-1, EN60601-1-2, CAN/CSA-C22.2
No. 60601-1, FCC, CE, CCC, TUV-GM, VCCI, KCC
Environmental RoHS, WEEE, REACH
Service and Support
Warranty 5-year standard warranty
Backlight Warranty 5-year standard warranty


Specifications may vary based on specific customized solution requirements.
